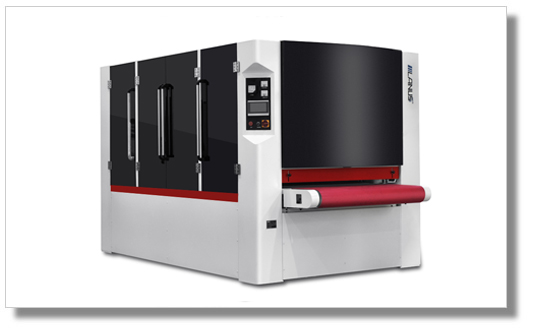

LSP series

  (Universal rolling brush deburring, surface drawing, chamfering blunt equipment)

Basic equipment parameters:

1. Applicable scope of equipment: suitable for flat plate parts, carbon steel plate, stainless steel plate, aluminum plate, copper plate, titanium alloy, all kinds of non-ferrous metals, rubber and plastic materials.

2. Equipment function: pre-grinding, drawing, polishing, scratching, deburring, chamfering, etc. for laser cutting, shearing, punching, cutting, plasma cutting

3. Equipment combination: wide abrasive belt + universal roller brush single or multiple combination structure

4.Processing width of equipment: 800mm、1000mm、1350mm 、1600mm

5.Processing thickness of equipment: 0.5-100 mm

6. Feeding speed :0.5-8 m/min( variable frequency adjustable)

7. Optional feeding mode:

 (1) Strong permanent magnet adsorption transport feed (suitable for carbon steel workpieces. Workpiece size ≥10 mm×10 mm)

 (2) Vacuum negative pressure adsorption conveying feeding (suitable for stainless steel plate, copper plate, aluminum plate, etc.) is not magnetically adsorbed. Workpiece size ≥50 mm×50 mm)

8. Four-column synchronous lifting, rolling brush position independent lifting, lifting servo control, accuracy 0.01 mm.

9. Machine NC PLC touch screen adjustment processing parameters.

Matching wet vacuum cleaner or industrial pulse vacuum cleaner to treat grinding dust to achieve environmental protection production

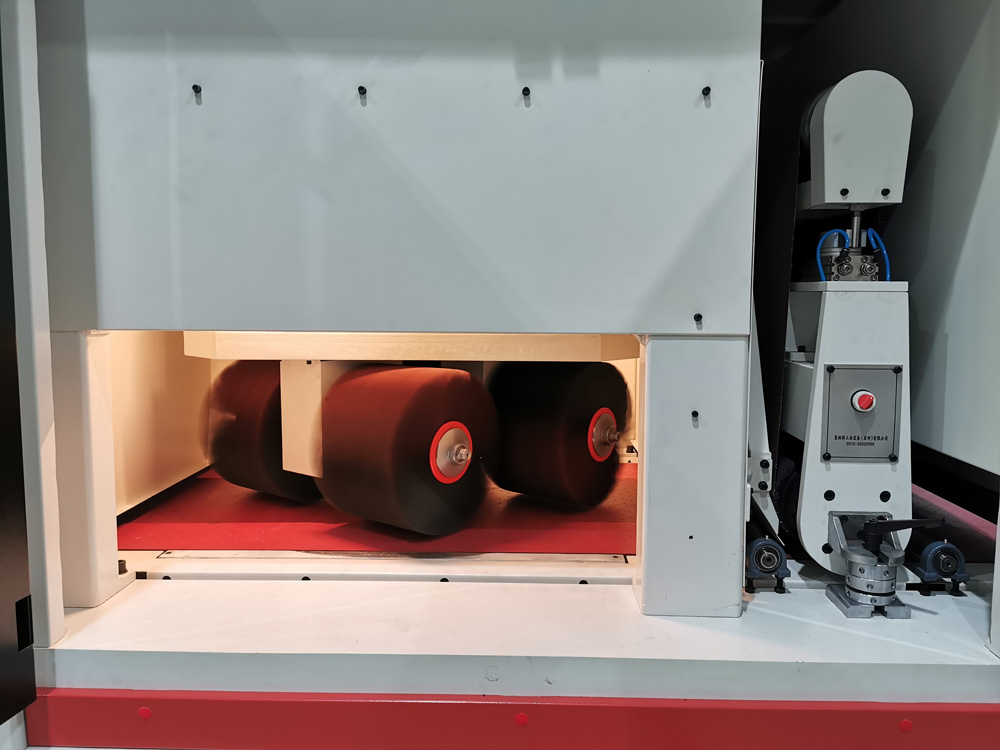

 EQUIPMENT DIAGRAM:
